Your Basic Lighting Kit: A Spin Around the Block

Abstract: A Guided Tour for your first steps with your new lighting kit. This post received a major update on Feb 2, 2020.



Okay, so the UPS guy has just dropped off your box of new lighting gear. What do you do with it? Where do you start?

No worries. You got this.

Once or twice a year, I teach a beginner's lighting class. But since I'm not here with you now as you are wading into the waters for the first time, let's replicate the first exercise in that class together, remotely.

We are going to walk through a "first steps" exercise with your new gear. If you are reading ahead just to explore, fine. Just make sure you come back to this page when your kit arrives.

First we are going to put our gear together for the first time, then we are going to use it to make some simple, dramatic portraits.


Getting to Know Your Flash and Remote Trigger



Today's flashes are extremely capable and feature-ladened. So they can seem a little daunting when you first set them up. Hang in there. It will quickly become intuitive.

Your Godox TT600 has many features that you won't need right now, but will appreciate later. Today, we are going to walk through setting it up in a basic way for our first steps exercise.

Install AA batteries in your flash (preferably NiMH rechargeable batteries, as you will get a faster recycle time.) Turn your flash on, using the on/off switch at bottom right. Our goal is to get the display info on the back of the flash looking like the photo above — i.e., set to channel 1, group A.

First we'll set it into the radio receiving mode (or, as Godox calls it, "S" mode for slave.) To do that, press and hold the "Mode" button until the radio icon starts to flash at the bottom left of the display.

Now dial the scroll wheel until you see an "S" pop up about a centimeter to the right of the radio icon. Hit set. Now, you have just set the flash to receive the signal from your radio remote.

Fun fact: when your flash is set to "S" (slave/receive) mode, a bright red light will start to blink on the front side of the flash. Godox thinks you need this, but I think it is stupid. You can't turn the flashing light off in the "S" mode. So I put a piece of black tape over it. (C'mon, Godox. Ditch this, or give us a way to turn it off.)

Next, we'll use the Gr/CH (group/channel) button to set the group and channel. We're going for group A, channel 1.

Press and hold the Gr/CH button until the channel starts blinking. This is bottom row, center-left on the display. Use the scroll wheel to dial it to "1". Hit set. You're now on channel 1.

Now, quick-press the Gr/CH button to cycle your groups. (Top row, center-left on the display). Get it to where it says, "gr A". Now, you're on group "A".

We'll now set the flash to manual mode by quick-pressing the "Mode" button. It'll cycle between "M" and "MULTI." We want "M," for Manual.

Once you are in "M" mode, you can set your power anywhere between full power (1/1) and very low power (1/128) by turning the scroll wheel.

Lastly, quick-press the "Zoom" button. Now, you'll see the zoom setting (a number followed by a "mm" flashing in the upper right corner.) Turn the scroll wheel until it reads 35mm. Hit set. This control varies the width of the beam of light emitted by the flash. 35mm is a good setting for umbrellas — it fills the umbrella without too much overspray of raw light.

Okay, your flash is set up. If you need to see video of using the settings, just search YouTube. There are several examples.


Let's Set Up the Remote



A NOTE FOR X1T REMOTE OWNERS:

These instructions and photos assume you are using an X2T remote. If you are using the X1T remote, your button sequence (and display screen) will be a little different, and are listed here. The object is the same: to get your remote set to trigger a flash on Channel 1, Group A.


We want to get it to look like the photo above.

First, install batteries and turn it on (via the power switch on the right side.)

Next, we'll set the channel. Hit the menu button once or twice until you see the menu tree pop up. Use the scroll wheel to get to "CH" for channel. Hit "set" to highlight the channel number at right. Use the scroll wheel to set it to "01". Hit set again. You're now on channel 01.

While you are here, scroll-wheel down to "ID". Hit "set". Scroll the ID number in the right side of the display until it says "off,"as seen above in the photo. (If this number is mismatched with your flash, nothing will work. "Off" is generally where you want it.)



Next, hit the "A" button up on top of the remote. This will highlight the "A" row in the back screen. You may have to hit it a couple times until you see the "A" row highlighted (i.e., reverse-blacked out). Now, hitting the "Mode" button on back will cycle it between M, TTL, and -- (which means off). You want "M".

Now you're set. When you press the test fire button on the remote (looks like lightning, up op the top panel) your flash should fire. If not, check to make sure the channel and group number (in our case, channel 1 and group A) match.

Test the flash and remote off camera before trying it on-camera. If it fires off of the camera, but not on the camera, your camera is probably not set properly to fire a flash. This is another problem caused by how complex cameras are now. For example, my Fujis will not fire a flash unless the flash is turned on in the camera menu. Also, it will not fire a flash with the shutter set to electronic. It has to be in manual.

If you are experiencing no-fires from the camera, a quick Google should solve it. (Or call the camera store you patronized!) God I miss film cameras sometimes...

NOTE:

You may see a musical note symbol on your flash (bottom right), and/or a speaker symbol on your remote. This are for audible beeps when the flash is recycled. You can learn how to change these in the custom function menus in your instruction books or on YouTube.



Assembling Your Lighting Kit

The tricky part is done.

Most of what follows is pretty obvious. But we are going to walk through it, step-by-step, just to be sure. You'll soon be doing it without a second thought.

Open up your light stand and extend it until the top is about at eye level. We can adjust this height easily later, but you may as well be assembling your swivel, remote, flash and umbrella at an easy-to-see working height.



Unscrew the little brass adapter that comes atop your light stand and stow it in your junk drawer. It is there in case you every need to convert the 3/8" male thread atop your stand into a ¼"x20 male thread. It's not something you'll often use.

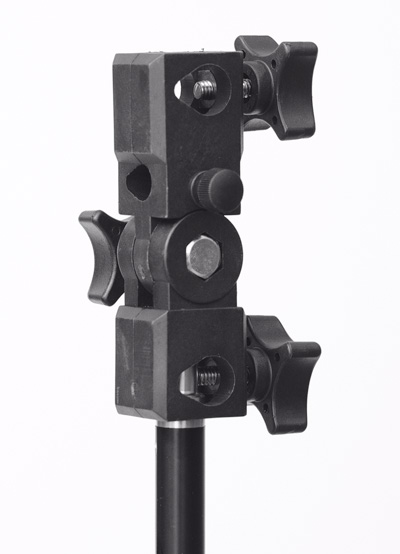

Take out your umbrella swivel. There is a brass stud inserted at each end. Loosen the clamp screw that holds each in place and remove the two brass studs.

One of the studs is a "male" version and will attach via the 1/4"x20 thread to a black "cold shoe." We will be using that stud today. The other brass stud is has two female ends, and can be used later to mount your flash to a variety of DIY mounts. So save that extra female brass stud for later (i.e., toss that in your junk drawer as well.)

One end of the swivel has a near-perpendicular (it's at a slight slope) "umbrella mounting hole." That is the top end of the swivel. Mount the opposite end of your swivel to the top of your light stand and clamp it down.

Attach your cold shoe to the male 1/4"x20 stud and clamp that assembly into the hole at the top of the swivel. Both of these connections should be reasonably tight.



Here (above) is how it should look, from top to bottom: Cold shoe stud -> end of swivel that has the umbrella hole in it -> (elbow of the swivel) -> open-holed end -> light stand.

If you mounted it upside down, it will become obvious when you go to put in your umbrella in a moment.



Mount your flash to the cold shoe, turning the lock on the base of the flash to secure it. Don't worry about the little screw-pin on the cold shoe. The flash should face in the direction of the umbrella holder hole where it comes out on an "upwards slant," as shown above.

Take out your umbrella and open it up. If your umbrella has a black backing, remove it. We will be starting out using it as a "white shoot-through" umbrella.

Next, mount your umbrella into the umbrella hole as shown. The shaft of the umbrella should run a little "uphill" compared to the orientation of the swivel. If it runs "downhill" you have it in backwards. This is the correct way:



Now that it is assembled, let's test that remote trigger setup. Make sure you can pop your flash with your remote.

If you are set up correctly, the flash should fire into your umbrella. If not, check to make sure the flash is turned on, and not sleeping. (You can control how fast the flash goes into standby mode in the deeper menus. You can always wake it up by hitting the test button on the remote.)

__________


Okay, Let's Make Some Photos!



This exercise is designed for beginners. So if that is you, you're in the right place.

We're going to start with something very simple: an all-flash umbrella portrait. No ambient (i.e., continuous) light, just flash. This is good, as there is only one thing to worry about.

To that end, we'll be working indoors with a simple plain background. We used medium gray paper, as you can see above. I am also switching the camera to shoot black and white, so we can just concentrate on light and form without the distraction of color.


First, We'll Kill the Ambient Light

Every time you take a flash photo, you are taking two photos at once: an ambient photo overlaid onto a flash photo. It's all light, and it is all cumulative in your exposure. To kill the ambient light portion of the photo (and make things easier for you) we'll just dial in our exposure so the ambient portion of the photo will be black (or near to it.)

Set your ISO to something moderate, say ISO 200. Now, close down your shutter speed until you are at your maximum sync speed. It should be marked—maybe with an "X"—and will likely be between 1/250th and 125th of a second. (1/250th is most common.) If you are not sure what your maximum sync speed on your camera is, consult your manual or ask someone who is familiar with your camera.

So, the ISO and shutter speed setting is designed to get rid of a lot of ambient light. Now let's close down the aperture to, oh, say f/8. In a normal room, ISO 200 at (or near) 1/180th and f/8 is going to make a dark available light photo. If not black, then very dark. And that's fine.

Now, let's add our flash to that, knowing it will likely be the only thing influencing your image.


Now Let's Add Some Flash

We are going to use Tarek, one of my students on whom I quickly demo'd this exercise, as our subject. We are literally going to take a walk around his head with our light and just see what happens.

Also, these are straight out of the camera. If you look, you'll notice a blemish on the background paper that is not even getting cloned out. The exposures are what they are. I am purposefully not correcting them to illustrate that, as long as you don't change your distances very much, your exposures should be fine from setup to setup.
__________

Let's mount our flash in our shoot-through umbrella. Which is itself mounted to your light stand (via the umbrella swivel adapter). This combo pretty much allows you to position your light source wherever you want in 3-D space. Make sure your remote is firing your flash: give it a test pop. Now, when you fire your camera, your (off-camera) flash will also fire. If it goes to sleep, change your sleep setting on your flash, or just give it a test pop to wake it back up.

Set your flash to 1/8 power by pressing the "A" button on your remote to group for which you have set this flash, and dialing the power up or down with the thumb wheel on the remote.

Set the "zoom" setting (on your flash) to 35mm to fill the umbrella without too much raw light spraying past the edges. (You do this on the flash: zoom button then scroll wheel.)

Put your umbrella about 45 degrees up and over to the left (that is the side I chose, but it's arbitrary) with the umbrella front surface at about three feet away from your subject.

Take a test shot. If it is too bright, dial down the power level of your flash. (Like, to 1/16th or 1/32 power or some setting in between.) Or vice versa if it is too dark. When you get your flash exposure (literally) dialed in, your photo should look something like this:



Is this awesome or what? We literally just started and we already have a classic 45/45 (45 degrees up and 45 degrees over) B&W portrait. Simple, and classic. When is the last time your flash made someone look this cool? Probably never—unless you have prevously gotten it off of your camera.

If you have a weird, umbrella-edge-shaped shadow on the wall, your raw flash light may be spilling past the edge of the umbrella. In that case, zoom in the flash a little bit or choke up the umbrella shaft on the swivel adapter and fix it. Or maybe even just rotate your umbrella a tad toward the wall. You'll figure it out.

So, look at the shape and character the 45/45 (up and over) light gives to a face. Let's play with that some.

We are going to move the light around Tarek's head a bit. If we keep our distance the same, our exposure will be the same. If we move closer with the flash, it will be brighter on him. So we'll just remove some power from the flash at the manual power setting (as we did if your flash was too bright.) Or vice versa if we move the flash further away. Just try it and see. It is less like math and more like cooking.


Now Let's Move That Light Around

Let's reposition our flash until it is firing right over the head and shoulders of the photographer. So it will be on-axis with the subject, but "up" a little bit:



The shadows are different. There is more revealed detail in the full face. It's a different mood. There is now a tell-tale butterfly-shaped shadow under Tarek's nose. Which is why on-axis (but "up higher") light is often called "butterfly lighting."

This is fun, no? Let's keep going.

Drop the light down a little, so your head and shoulders are basically in front of bottom of the umbrella. The light is wrapping around you and you are pretty much lighting your subject on-axis.

Now his face (and the photo) looks different yet again:



Okay, now let's play with distance. Go back to your previous 45/45 positiion (up and over) and move that light in reeeeally close. Take an exposure test. Too bright, right? You'll have to dial the power of the flash down a bit to get your proper exposure back.



See how the light looks bigger, softer? That's because it is much closer to your subject's face, and appears to him to be bigger. (That's what counts with lighting.)

Okay, enough with this typical flattering light. Let's amp up the character aspect a bit. And this is what I loooove about lighting. You are in control.

Let's bring our light around to camera left (Tarek's right) for a moody profile shot. If you have changed your distance, you'll have to readjust your flash power to get a proper exposure. Or even if you have not changed your distance, you'll often find lighting a person in profile is somehow more efficient (light skims off of them very efficiently) and you have to drop your flash exposure anyway.



Oh that looks cool. Tarek in contemplation. Mr. Deep Thought.

Let's push it further around him to our left. Now the light is actually a little behind him, to camera left. So we call more attention to his face:



Has more of an emotional feel to it, maybe. Okay, let's drop that baby down a bit, still staying at camera left:



Okay, this is more Tarek the Homicide Detective in the crime drama, right? Same room, same guy, same light, same umbrella—we literally just dropped the light down two feet. I love this stuff.

Let's go the other way. Grab a friend and have them suspend that umbrella (just hold the stand, it's not hard) up over Tarek's head. Point that umbrella straight down and see what happens.



Hmm. If the previous shot was Homicide Detective, this may be trending a little toward the criminal in that same movie, right? Let's walk that light a little more to the right (still up top, tho) and have Tarek throw us a look over his shoulder.



Oh yeah, definitely a criminal look now. Don't mess with top-lit, glancing-over-the-shoulder Tarek. He'd surely kill you as soon as look at you.
__________


So Little Gear, So Much Cool



Be honest: are you a little surprised at how easy it is to take the first steps into creating beautifully lit photos? Most people are, when they try it for the first time.

I love this stuff. Always have, since I started doing it over 25 years ago. And it is really easy to learn, but you have to actually do it to learn it. I can explain to you how to ride a bicycle, but until you get on one and actually do it, you won't really know how.

And that's exactly what these guys are doing here. And every single one of them was coming up with photos just like the ones above in relatively short order. Just by playing around.

And that is the secret: you have to actually do it. You have to play. You have to experiment. And if you are willing to do that, you'll learn this stuff very quickly.
__________


This was a walk-through of your first steps in lighting. Yours might not look exactly like mine, but you should be starting to get an idea with a bit of practice. Simple, beginning umbrella light is pretty cool, huh?

But there are lots of ways to shape your off-camera light—and even more interesting ways to use your umbrella. We'll take a look at that next.


Next: Get to Know Your Umbrella
